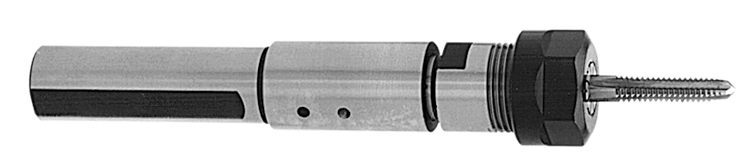

ER Tension Only Tap Holders

ER Tension Only Tap Holders

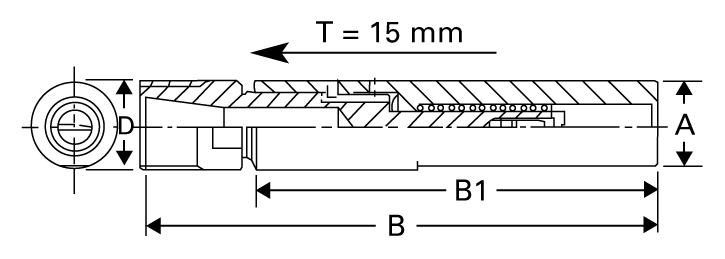

ER Tension Only Tap Holders - Diagram

  • PERMITS TAPPING USING ER16 COLLET SYSTEM #0-5/16 HAND TAP CAPACITY.
  • IDEALLY SUITED FOR THROUGH HOLE APPLICATIONS ON SWISS AND JAPANESE AUTOMATICS AND LATHES.

ER16 TENSION ONLY TAP HOLDERS
Part No. A B B1 D Tension Nut

SS20ERT693

20

6.93

3.94

1.10

0.59

ER16H

SS22ERT531

22

5.31

3.94

1.10

0.59

ER16H

SS075ERT535

3/4

5.35

2.36

1.10

0.59

ER16H

SS075ERT394

3/4

3.94

2.56

.87

0.59

ER16M
